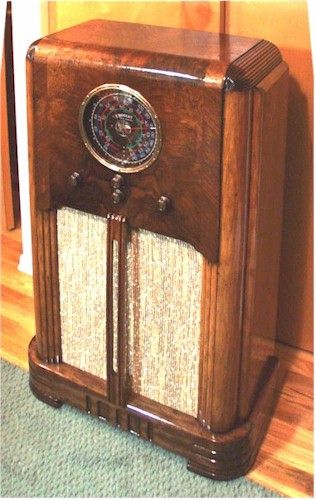

Crosley B695 (636) (1936)
Crosley B695 (636)
Photo(s) donated by Michael Feldt.
Visit Michael's web site at http://www.indianaradios.com/.

To see all the photos Michael has contributed to RadioGallery.net, click here.
The B695 was a farm set running on a single 6 volt battery that it converted, by means of a vibrator unit mounted on the chassis, to a higher voltage for the B+ power requirements. I acquired this set at the 1999 Radiofest swap meet at Elgin, Illinois.

Tube Line Up:
15...R.F. Amplifier
6A7...1st. Detector/Oscillator
6B7...I.F. Amplifier
15...2nd. Detector/AVC
15...Audio Driver
19...Push - Pull Audio Output

Frequency Ranges:
BC Band (Blue)...550 kHz - 1700 kHz
P Band (Blue)...1.9 MHz - 6 MHz
SW Band (Red)...6 MHz - 18 MHz
